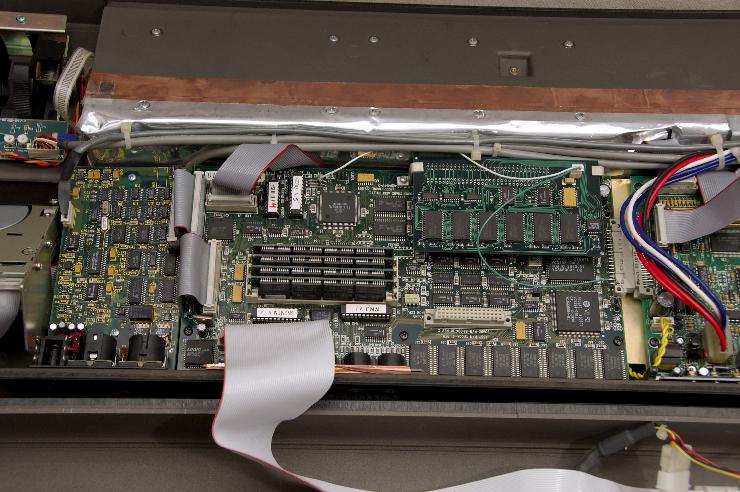

  DSC_6954.jpg - Overall view of the secondary board with the PRAM option installed. Notice the white and green wires that must be soldered in order for the PRAM to work properly!The large flat gray ribbon cable is the SCSI connection to the internal hard drive, a Seagate Barracuda hot monster. It's been having issues with not spinning up completely, so it's time to replace it (or do the capacitor mod recommend on SonikMatter.com)!
